Description

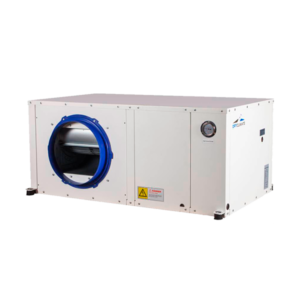

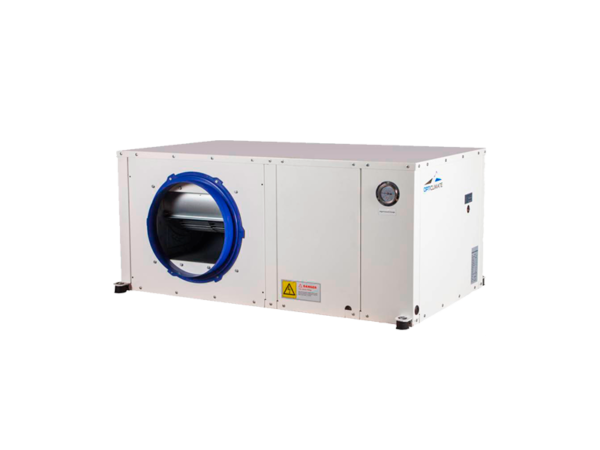

The OptiClimate 15000 PRO3 water-cooled air conditioner has a cooling capacity of 15 kW, consumes between 5 and 9 liters of water per minute and has 3x2700W heating elements.

Name: OptiClimate 15000 PRO3
Connection voltage: 400V
Cooling capacity: 15000W
Water consumption: 5.0-9.0 L / min ***
Rated power: 3100W
Phase 3*
Connection:
3-phase automatic D25 4.0mm2 wire (In this unit, the compressor is divided into 3 phases)
Heaters: 3x2700W
Dehumidification capacity: 270 L / 24h **
Size: 121x70x54
Weight: 160kg

In two and three-phase connections, connect one heater per phase
With a humidity in the air of 80% and an ambient temperature of 30ºC
With the temperature of the cooling water between 6ºC and 20ºC
