Description

The Split EX (Extended Reach) unit of the OptiClimate 10000 PRO3 can cover a distance of up to 30 meters between the outdoor and indoor units. The OptiClimate Split EX is supplied with a set of two 15 meter cooling hoses. If a longer hose is required, it can be ordered up to a maximum of 30 meters. For example, if 30 meters of hose is required, this hose must be ordered 15 times (for an extra 15 meters).

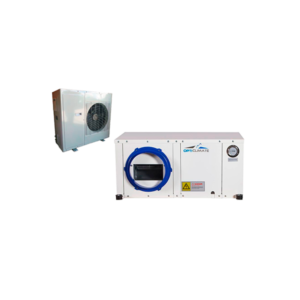

Name: OptiClimate 10000 PRO3 Split
Connection voltage: 230-400V
Cooling capacity: 10000W
Rated power: 2390W
Phase: 1o3 *
Connection:
single phase automatic D35 4.0mm2 cable
three-phase automatic D20 2,5mm2 cable
Heaters: 3x2000W
Dehumidification capacity: 170 L / 24h **
Size One. Indoor: 115x56x50
Weight Un. Inside: 110kg
Size One. Exterior: 95x36x83
Weight Un, Outside: 38kg

In two and three-phase connections connect one heater per phase
With a humidity in the air of 80% and an ambient temperature of 30ºC
